Thermal Imaging | 2611 Tactical Products

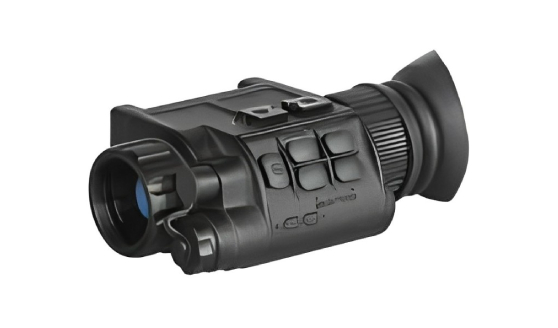

TI14

Type	Thermal System
Description	The TI14 is a Thermal System intended for Law Enforcement, Military and commercial uses. It is built around state-of-the-art uncooled Thermal Imaging Technology, highly integrated DSP-based electronics and a compact, lightweight system...
Video Frame Rate	30Hz
Magnification	1.8x
Objective Focal Length	25 mm
FOV	11° x 8°
Focus Range	from 1 m to infinity
Operating Temperature	from -20°C to +50°C
Focus Adjustment	Manual
Exit Pupil	14 mm
Eye Relief	25 mm
Detector Type	Uncooled Microbolometer
Spectral Response	7-14 μm
Pixels	160 x 120
Pixel Size	30 x 30 μm
Angular Resolution, mrad	1.2
Thermal Sensitivity	< 0.1°C
Range to Detect a Human	475 m
Output Format	Analog PAL / NTSC
Display	Color OLED matrix
Display Format	SVGA, 852 x 600 pxl
Digital ZOOM	Fixed 2x (optional 5x)
Brightness Adjustment	Manual
Contrast Adjustment	Automatic
Available User Interfaces	From outside PC through USB interface
Power Supply	2 x 3 V CR123A type battery
Start-Up Time	< 3 sec
Operating Time w/one battery pack	4 hrs
External Power Supply	DC 6V, 500 mA
Waterproof	Yes, up to 10 m submersion
Dimensions	118x81x52 mm
Weight	0.34 kg
Warranty	1 year
Features:	High resolution digital thermal imaging Compact, lightweight and durable housing Head/helmet mountable for hands-free use High Quality optics Video and computer output Video/Image polarity selection Waterproof Limited 1 Year Warranty
Included Accessories:	Instruction Manual Lens Tissue Packing box Warranty card Mil-Spec Hard Case Two Lithium Batteries Video Cable Lens Cap Soft carrying Case
Optional Accessories:	Goggle Kit PC Cable Lens 2X Universal Helmet Mount Kit

TI17

Type	Thermal Multi-Purpose System
Description	The TI17 B&W is a compact Multi-Purpose Thermal Imaging System.This TI17 B&W is built around state-of-the-art uncooled Thermal Imaging Technology , highly-integrated DSP based electronics and a compact lightweight system...
Video Frame Rate	30Hz
Magnification	1.8x
Objective Focal Length	25 mm
FOV	11° x 8°
Focus Range	1 m to infinity
Operating Temperature	-20°C to +50°C
Focus Adjustment	Manual
Exit Pupil	14 mm
Eye Relief	25 mm
Detector Type	Uncooled Microbolometer
Spectral Response	7-14 µm
Pixels	160 x 120
Pixel Size	30 x 30 µm
Angular Resolution, mrad	1.2
Thermal Sensitivity	< 0.1°C
Range to Detect a Human	475 m
Output Format	Analog PAL / NTSC
Display	OLED matrix
Display Format	SVGA, 852 x 600 pxl
Digital ZOOM	Fixed 2x (optional 5x)
Brightness Adjustment	Manual
Contrast Adjustment	Automatic
Available User Interfaces	From outside PC through USB interface
Power Supply	-
Start-Up Time	< 3 sec
Operating Time w/one battery pack	-
External Power Supply	DC 6V, 500 mA
Waterproof	Yes, up to 10 m submersion
Dimensions	195x81x105 mm (w/ weapon mount) 118x81x52 mm (w/o weapon mount)
Weight	0.74 kg (w/ weapon mount) 0.34 kg (w/o weapon mount)
Warranty	1 year
Features:	High resolution digital thermal imaging Compact, lightweight and durable housing Head/helmet mountable for hands-free use Weapon mountable Video and computer output Video/Image polarity selection Waterproof One-Year Warranty
Included Accessories:	Instruction Manual Lens Tissue Packing box Warranty card Mil-Spec Hard Case Two Lithium Batteries Goggle Kit Video Cable Lens Cap Weapon Mounting System Soft carrying Case
Optional Accessories:	Dual Bridge PC Cable Lens 2X Universal Helmet Mount Kit
