Pescenders
Our machined pulleys are milled from solid 7075 aluminum so we can take material away where it’s not needed and leave it where it is. The axle is machined as part of the side plate, allowing us to use a flush head axle screw. That’s why these pulleys are more compact, stronger and lighter weight than conventional stamped pulleys.
01

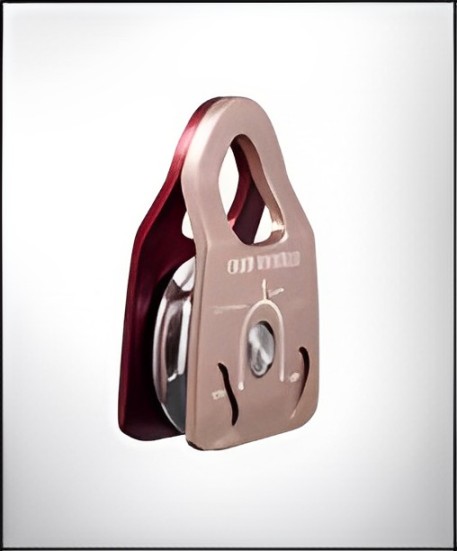

Minding Pulley
Weight: 11 oz (311 gm), Breaking Strength: 2 x 18 kN=36 kN
, Working Load: 2 x 4kN=8 kN
, Max Rope Diameter: 13 mm
, Sheave Diameter: 2.0” (51 mm)
02

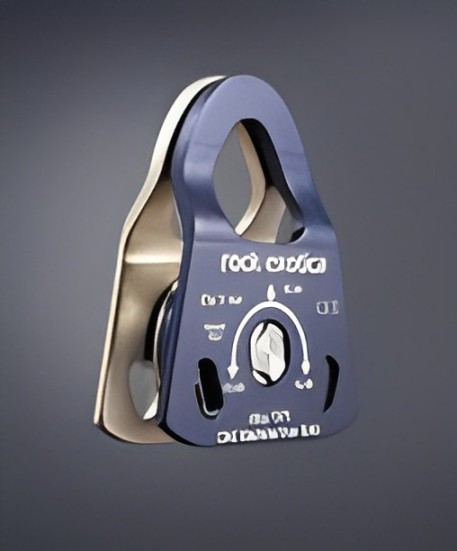

Machined Pulley
Lightweight pulley with low resistant bearing
High breaking strengh
Individual serial number
Alloy 7075, CNC machined from solid block
03

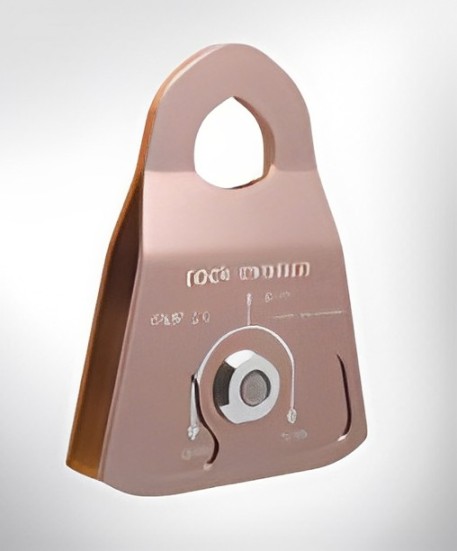

Mini Machined Pulley
Lightweight pulley with low resistant bearing
High breaking strengh
Can be used for mini MA-Systems
Individual serial number
Alloy 7075, CNC machined from solid block
Weight: 5.0 oz (141 gm) Breaking Strength: 2 x 9 kN x 2=36 kN Working Load: 2 x 2kN x 2=8 kN Max Rope Diameter: 11 mm Sheave Diameter: 1.1” (21 mm)
04

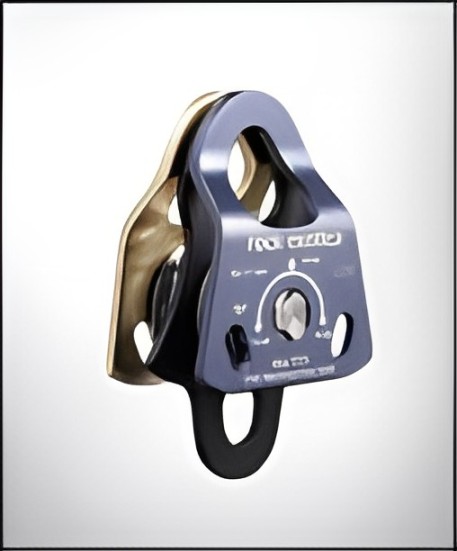

Rescue Pulley
Lightweight pulley with low resistant bearing
High breaking strengh
Max. 13 mm Rope
Individual serial number
Alloy 7075, CNC machined from solid block
Weight: 5.1 oz (144 gm) Breaking Strength: 2 x 18 kN=36 kN Working Load: 2 x 4kN=8 kN Max Rope Diameter: 13 mm Sheave Diameter: 1.5” (38 mm)
